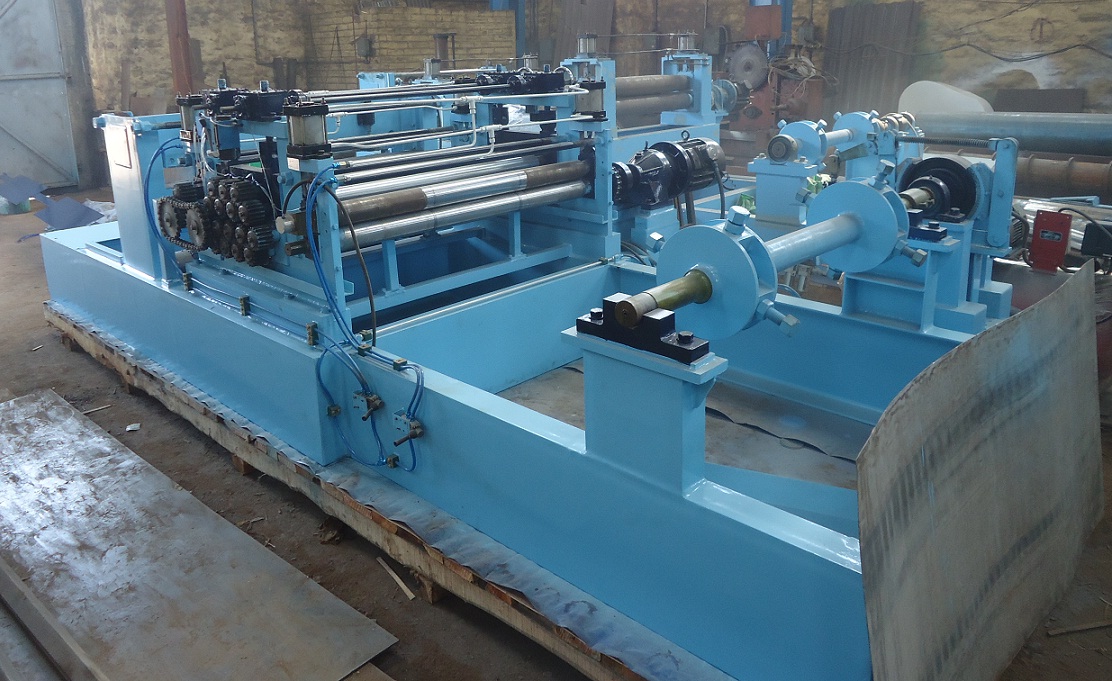

ALUMINUM SHEET CUTTING LINE
- Model No: CTLAL-1000
- Category: Machinery
- Keywords: Aluminium Sheet Cutting Line, Cutting Machines, Sheet Cutter, CTL, Cut to Length Line, Cut to Length Machinery, Automatic Cutting Machines, Aluminium Sheet Cutter.
- Manufacturer Name: B.S. Engineering Co., Howrah, W.B., India
- Packing size:
- Price: NA
Description
AUTOMATIC ALUMINIUM SHEET CUTTING (CUT-TO-LENGTH) LINE : General specifications : INPUT MATERIAL : ALUMINIUM SHEET COIL COIL WT. : 2,500 KGS. COIL WIDTH : 1,000 MM. SHEET THICKNESS : 0.18 MM. – 2.0 MM. COIL BORE : 508MM. CUTTING LENGTH : 1,830 MM.(6’) – 3,660 MM.(12’) PACKING WT. : 2.5 TON (MAX.) List of Machinery : DECOILER SHAFT PINCH ROLL CUM LEVELLER ASSEMBLY SHEAR PILING TABLE ELECTRICAL CONTROL PANEL LENGTH TOLERANCE ± 0.20 MM. DIAGONAL TOLERANCE ± 0.20 MM.
