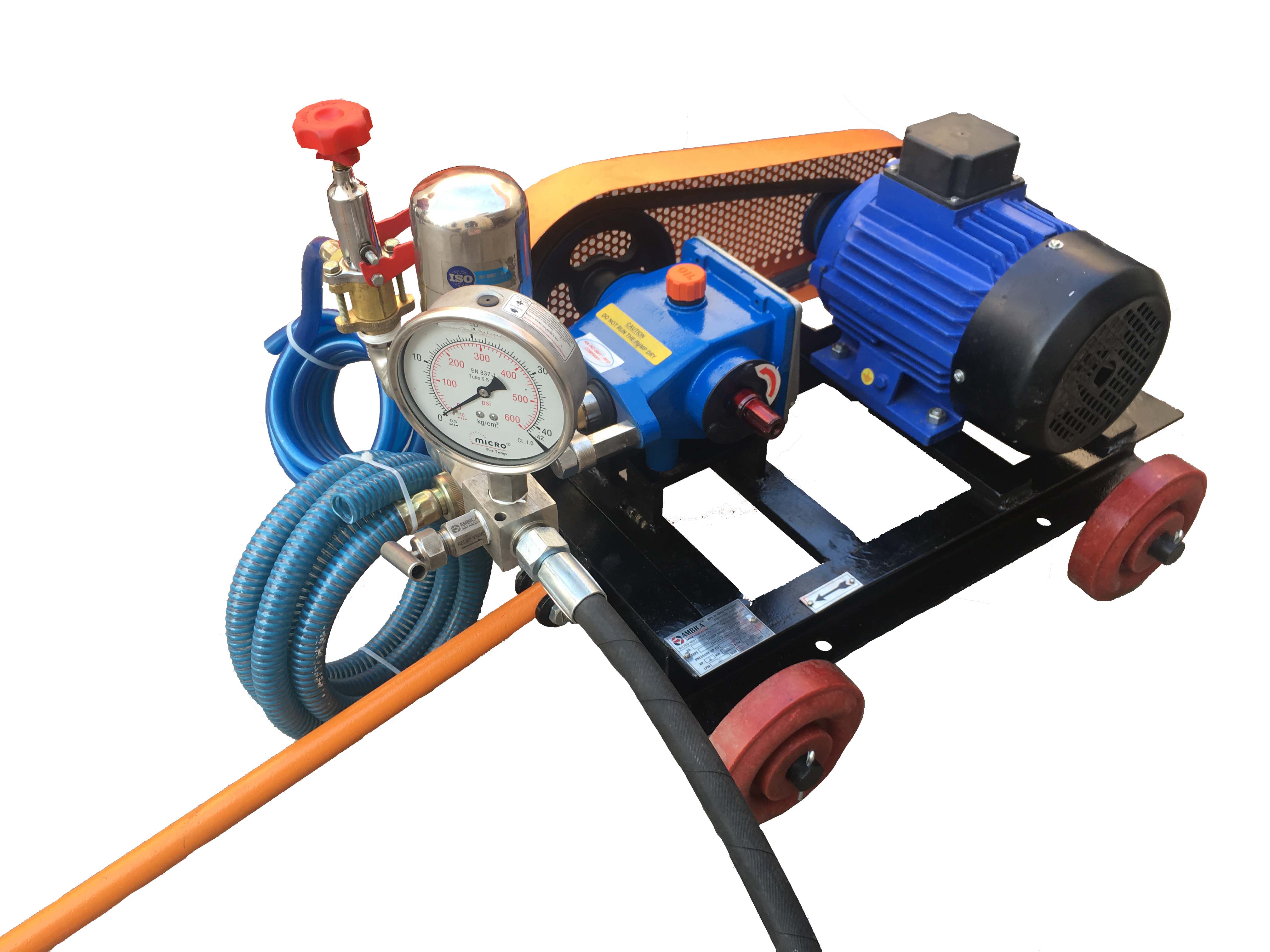

TRIPLEX PLUNGER PUMP

Description

PUMP SPECIFICATION : Type : Triplex Plunger Hydro Test Pump Modal No : AMTTPP – 18/20 (HSN :- 94135090) Make : “AMBICA” Suction Size :- 3/4” with BSP Connection Discharge Size :- ½” with BSP Connection Capacity Pressure up to :- 0- 20 kg/cm2 Capacity (LPM) :- 15 LPM Plunger : TRIPLEX PLUNGER Plunger Size :- Ceramic Clotted Plunger and size :- 22 mm Pump RPM :- 650 Electric Motor Make :- CGL OR BHARAT BIJLI MAKE Motor :- 02 HP /1440 RPM Foot Mounted, 50 Hz, 415 V, 4 Pole (NON - FLP Motor) IP – 55, 3 Phase, AC Supply with F Class Insulation, Frame Size :GD/ND 100 L - (Fan Cooled Squirrel Cage NON - Flameproof Motor) STANDARD ACCESSORIES WITH MOC :- 1. Pressure release cock made from S.S. 304 Material - Needle Type Valve 2. Pump body made from Cast Iron and powder coated 3. Pump Head made from S.S. 304 Material 4. Discharge Pressure hose with attachment of 1 ½’’ BSP Length 2 Mtrs. 5. Suction pipe with with attachment and Strainer of ½’’ BSP connation 6. Over flow pipe with attachment of ½’’ BSP connation 7. Glycerin Filled Pressure gauge 4” Inch Dial MAKE ;- Micro Pressure Control with calibrated 8. NRV made form Stainless Steel 304 material, Pulley Made from Cast Iron and V Belt 9. Air Chamber Made from Stainless Steel 304 Material 10. Pump Stand made from Mild Steel 3” X 1 !/2” C Channel 11. Pulley Guard Made from Mild Steel Metal and powder coated 12. Pump Mounted on Suitable trolley with four rubber wheel 13. Suction Strainer Made from SS 304 Material
