AMBICA MACHINE TOOLS

Description

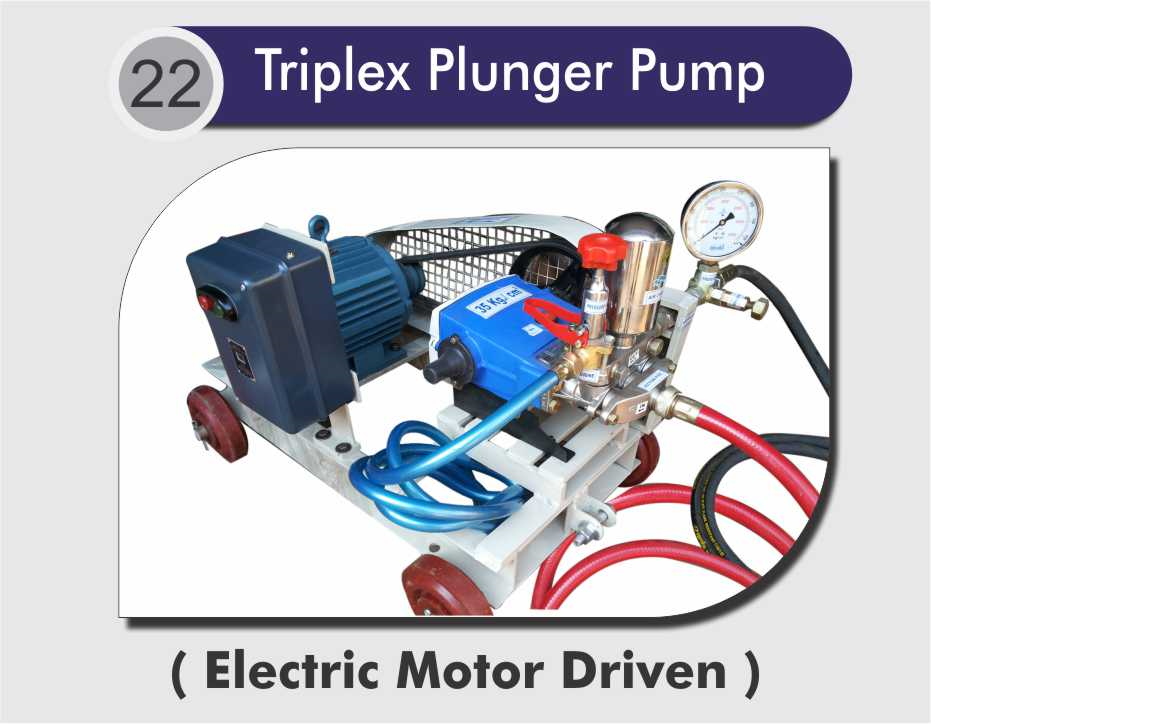

PUMP SPECIFICATION : Type : Triplex Plunger Hydro Test Pump Modal No : AMTTPP – 50/50 Make : “AMBICA” Suction Size :- 3/4” with BSP Connection Discharge Size :- ½” with BSP Connection Capacity Pressure up to :- 0- 50 kg/cm2 Capacity (LPM) :- 50 LPM Plunger : TRIPLEX PLUNGER Plunger Size :- Ceramic Clotted Plunger and size :- 22 mm Pump RPM :- 750 Electric Motor Make :- CGL Make OR BHARAT BIJLI MAKE Motor :- 05 HP /1440 RPM Foot Mounted, 50 Hz, 415 V, 4 Pole (NON - FLP Motor) IP – 55, 3 Phase, AC Supply with F Class Insulation, Frame Size :GD/ND 100 L - (Fan Cooled Squirrel Cage NON - Flameproof Motor) STANDARD ACCESSORIES WITH MOC :- 1. Pressure release cock made from STAINLESS STEEL 304 Material – Needle Type Valve 2. Pump body made from Pressure Dai Cat Alum.Material and powder coated 3. Pump Head made from STAINLESS STEEL 304 Material 4. Discharge Pressure hose with attachment of 1 ½’’ BSP Length 3 Mtrs. 5. Suction pipe with with attachment of ½’’ BSP connation 6. Over flow pipe with attachment of ½’’ BSP connation 7. Glycerin Filled Pressure gauge 4” Inch Dial MAKE ;- Micro Pressure Control with NABL calibrated 8. Pressure Gauge Sunbber Made from STAINLESS STEEL 304 Material 9. Suction Steiner Made from STAINLESS STEEL 304 Material 10. Air Chamber Made from STAINLESS STEEL 304 11. NRV made form Stainless Steel material, Pulley Made from Cast Iron and V Belt 12. Pump Stand made from Mild Steel 3 X 1 ½” C Channel (Powder Clotted) 13. Pulley Guard Made from Mild Steel Metal and powder coated 14. Pump Mounted on Suitable trolley with four PU wheel 15. L & T Make D.O.l. Starter
