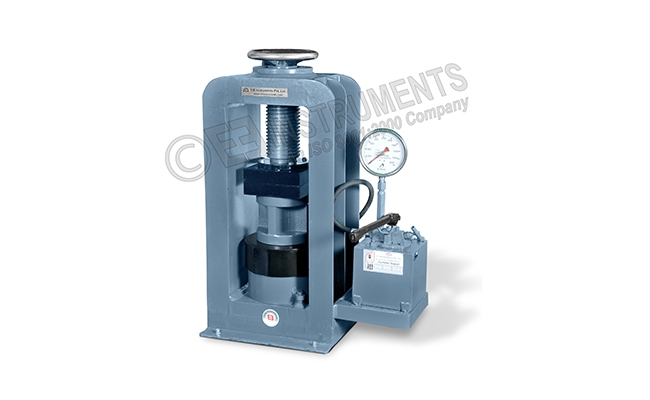

Compression Testing Machine

Description

With Improved and Novel Pump - for easy and effortless pumping, the pump becomes more and more light as the load increases. For determination of compressive strength of cement by testing concrete cylinders, cubes. The machine works on hydraulic pressure gauge marked in 5 KN division and is fitted with maximum red pointer, in addition to the live pointer. The machines are nicely painted in hammertone stray. Complete with pressure gauge duly calibrated. Some of the salient features are High Stability Self-aligning platen assembly. Gauges are calibrated in Kilo Newton against certified Proving Rings. Suitable for testing cubes of various sizes Using special platens, bricks also can be tested.(Extra cost) Hydraulic Piston hard chrome plated. General Specifications 1) LOADING UNIT The loading unit consists of a cross-head and base with solid channel supports connecting the base and cross-head firmly. The Hydraulic jack is fixed to the base. The platen of the machine are hardened ground and polished The upper platen is provided with self-aligning action. To facilitate testing of various size specimens, spacer block provided. 2) PUMPING UNIT The hydraulic pumping unit is Manually Operated. Made of POLYHYDRON make. The load is measured on Bourdon tube type pressure gauge which is calibrated against certified proving rings. The pressure gauge is fitted maximum load pointer.
