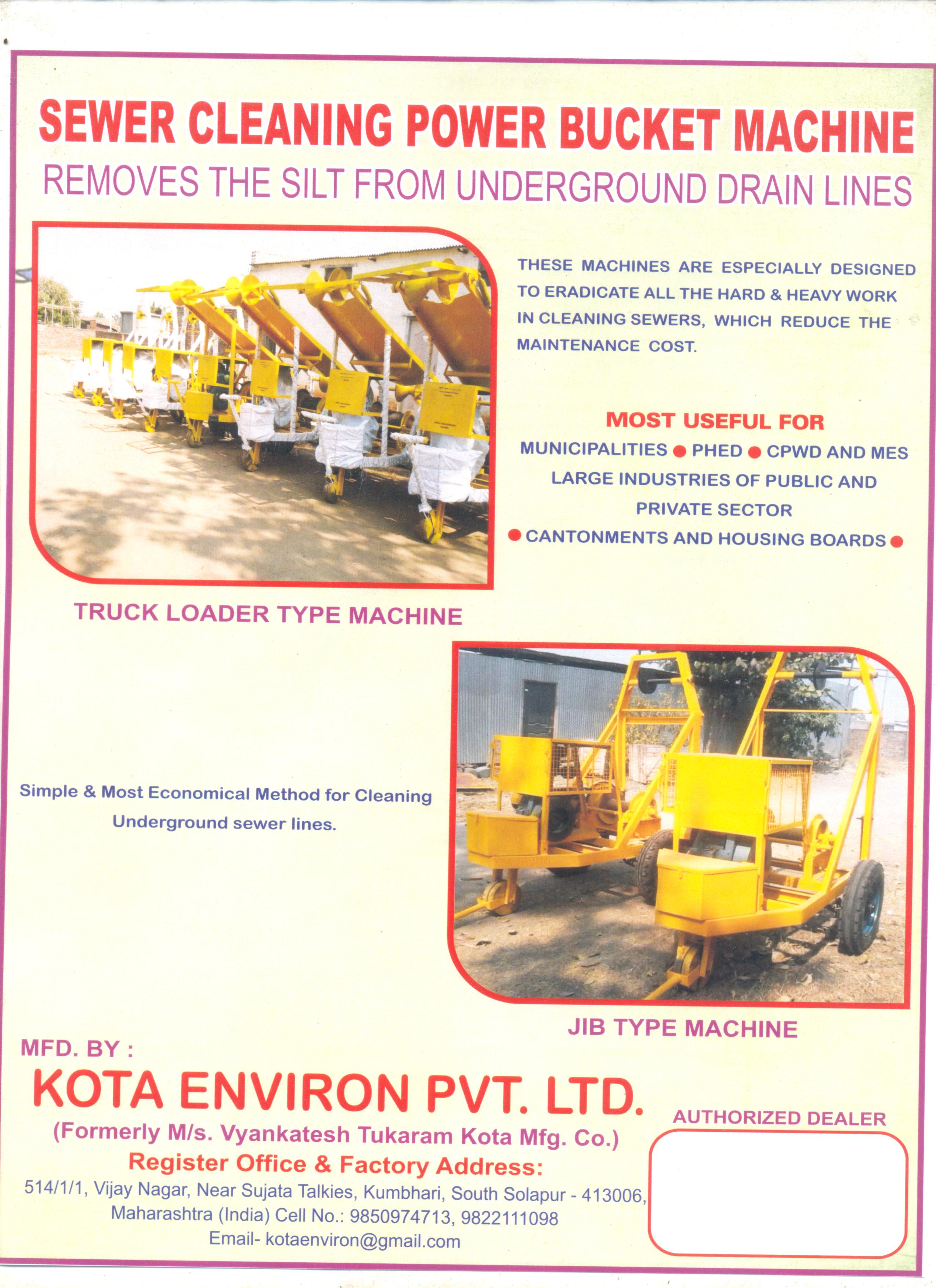

Sewer Cleaning Power Bucket Machine

Description

Sewer Cleaning Power Bucket Machine for cleaning underground sewers of main trunk sewers. Consisting each set powered by 10 BHP 2000 RPM Single CYLINDER AIR COOLED DIESEL ENGINE (Kirloskar make with Test Certificate). Completed with Clutch control for Disengaging and engaging the drive to the winding drum with hand break for instantaneously stopping the drum. Drive assembly mounted on a two wheeled spring chassis with pneumatic tyre for towing and additional cushion rubber tyred wheel in swiveling caster for parking & maneuvering. Each set is consisting of two machines, JIB type suitable for cleaning sewers with manholes of Dia 55cms (22’). This machine can clean the sewers from 150mm (6’) Dia up to maximum (24”) Dia. A set shall be completed with all rigging accessories as follows. 1. 12mm dia steel wire rope of 6x 19 const with frames(Reputed make) 350 Meters. IS:2266/1977- 2. Tool Box 2 Nos 3. Swivel Shackles with ‘D’ Shackles IS:3445/1966 2 Nos. 4. Slant Manhole Jack 1 No. 5. Bull Dog Grip suitable for 12mm dia wire rope 6 Nos. 6. Surface Plat from complete with pipe clamps 2 Nos. 7. 375 mm Rollers with Frame 1 No. 8. 300 mm Roller with Frame 1 No. 9. Large Hand Hook 1 No. 10. Emergency Handle 1 No. 11. Winch Buckets suitable for 150mm,200m, 250mm, 5 Nos. 300mm, 450mm Sewer size (1 No. Each Size) IS:10552/1983 12. Screw Jack Legs 4 Nos. 13. Platform Jack legs 4 Nos. 14 . Spanner Kit (Medium) 1 No.
