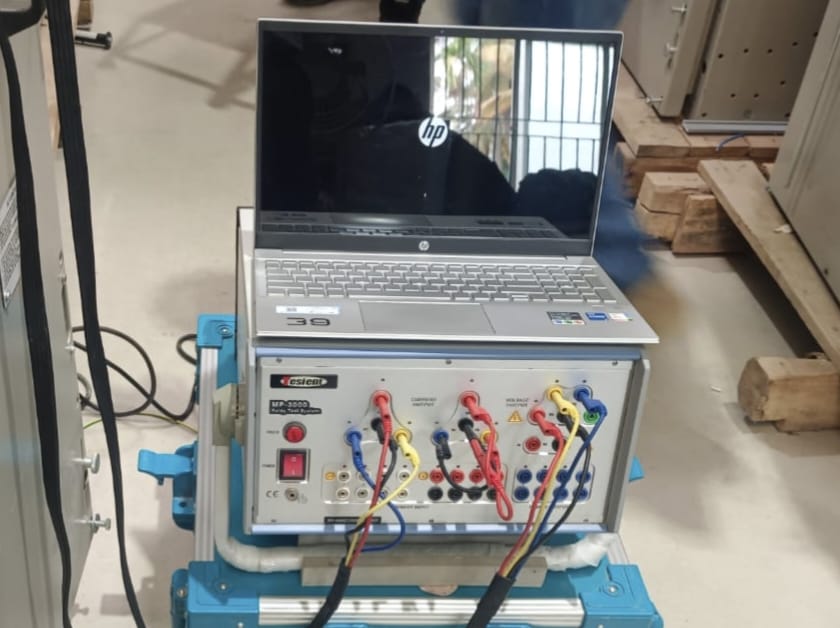

Universal Protection Relay Test System
- Model No: MP3000A
- Category: Testing and Measuring Instruments
- Keywords: Relay test kit, Relay test set, relay tester, three phase relay test set, three phase relay test kit, automatic relay test set, automatic relay test kit, automatic relay tester, secondary current injection set, secondary current injection test set, secondary current test set, frequency relay tester, relay testing kit, relay testing set, distance relay test set, differential relay test set, df/dt relay test set
- Manufacturer Name:
- Packing size:
- Price: ₹1,749,000
Description
MP3000A Universal protection relay test system is an alternative to existing high priced options such as omicron, megger, doble , isa ect. It has six independent current and four voltage outputs . All the current outputs are overload protected and all the voltage outputs are short circuit protected. Other protections such as over temperature protection and power supply protection are there. There are 8 binary inputs and 4 binary iinputs. Pc connection is through etherent port. The test system is controlled through MPWIN Relay test software installed on PC/ LAPTOP. There is no license required. The test system is built on advance plugin module technology, hence it is easy to maintain . One auxiliary dc output 0-250 V is available.
