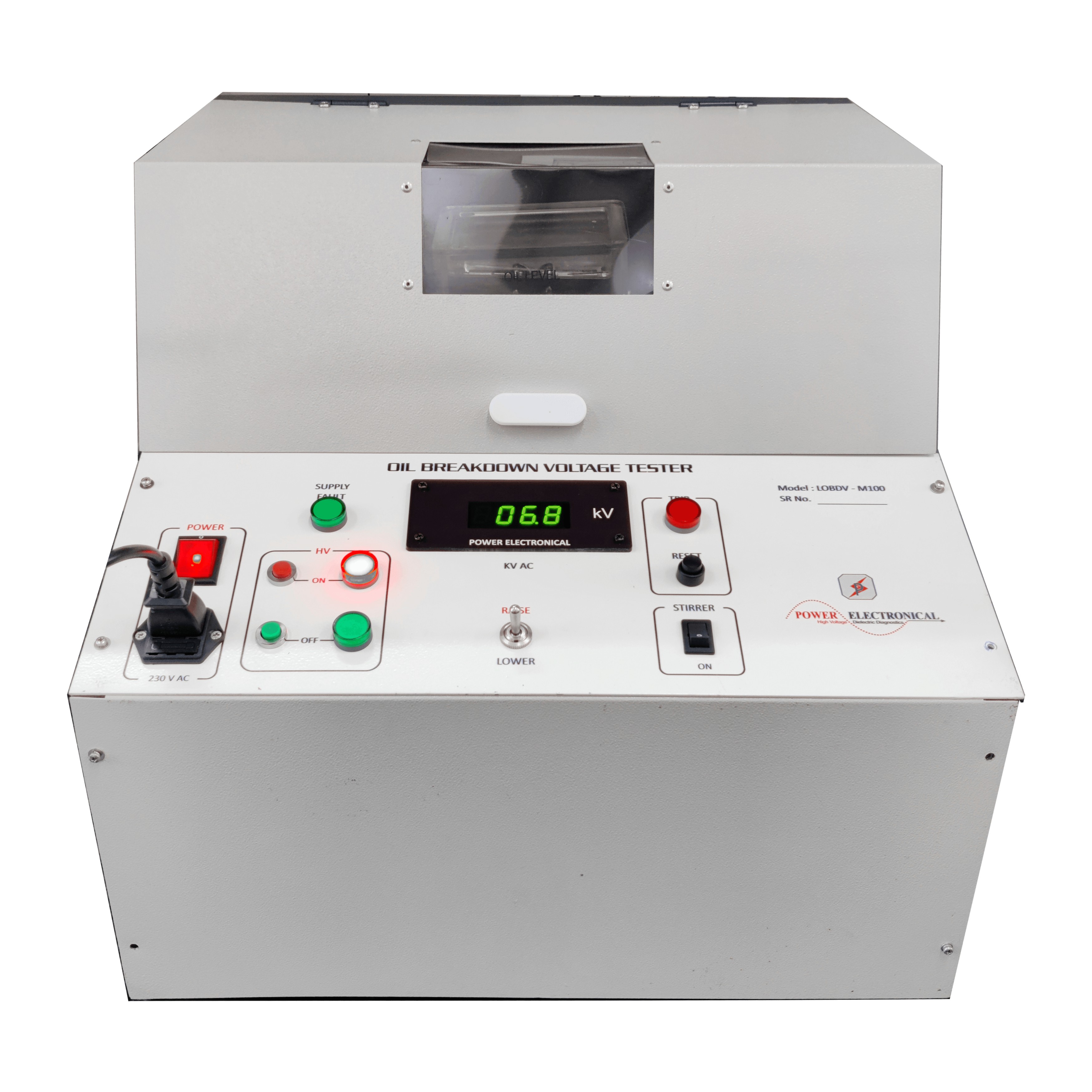

Motorized Oil Breakdown Voltage Tester
- Model No: PE-LOBDV-M100
- Category: Testing and Measuring Instruments
- Keywords: Input /Output Power Supply- Single Phase AC 200V-250V 50 Hz Voltage output PE-LOBDV-M100- 0-100kV AC PE-LOBDV-M080- 0-80kV AC PE-LOBDV-M060- 0-60kV AC Display- 3 ½ Digital display Output Voltage accuracy- 2% of readout Output Voltage resolution- 0.1 kV (100V) Automatic voltage ramp rate- approx. 2kV/sec Trip Current- 20mA max Atmospheric Operating Temp- –10°C to +50°C Humidity < 75% non-condensing Physical Size- 450mm(W) × 450mm(D) × 400mm(H) Gross Weight- 45kgs (including accessories)
- Manufacturer Name: Power Electronical
- Packing size: (600*600*600) ( L*W*H )mm
- Price: ₹60,000
Description
PE-LOBDV-M series is a motorized transformer oil breakdown voltage testing kit. The kit is a highly precise and accurate instrument which can perform breakdown voltage test or oil dielectric strength test.
