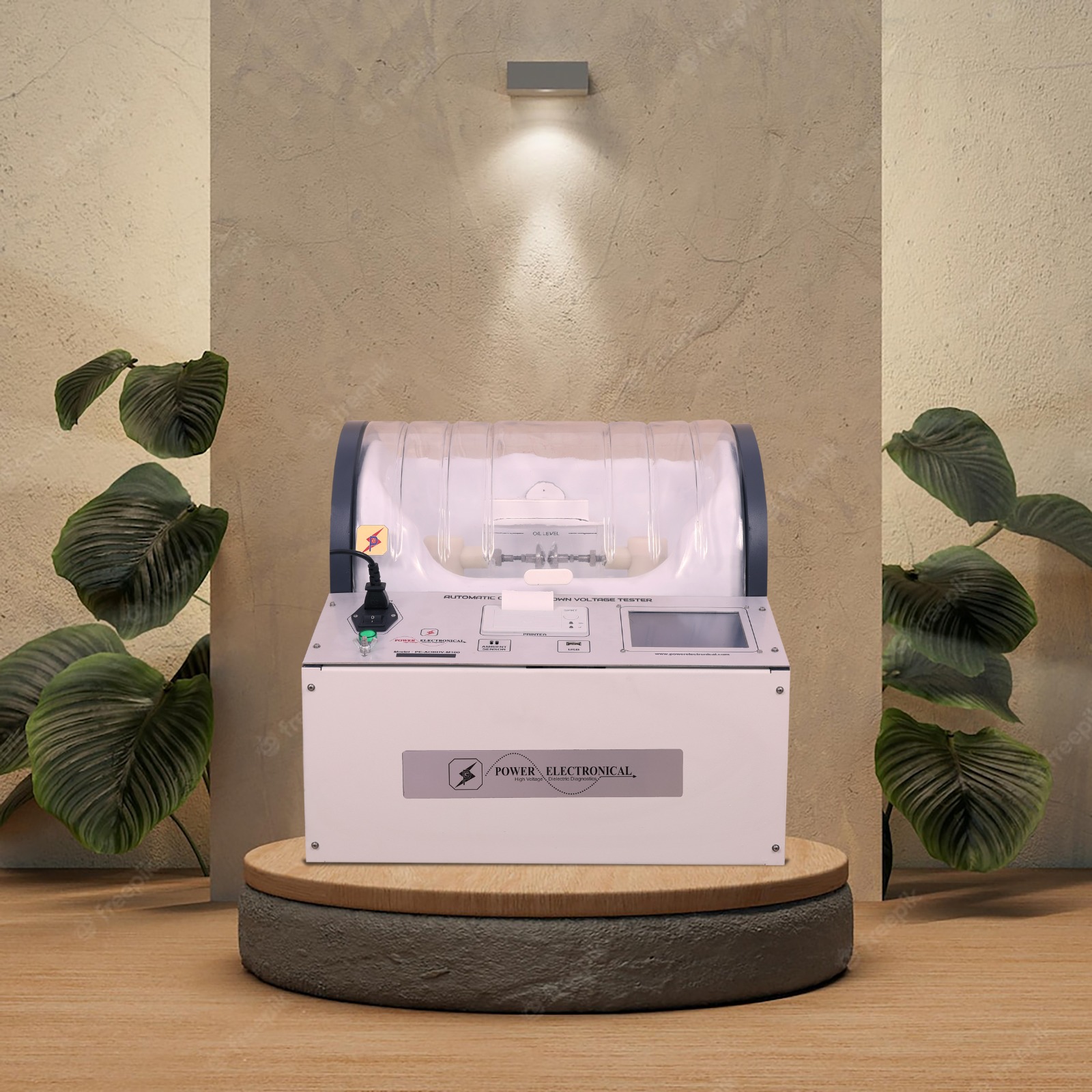

Automatic Oil Breakdown Voltage Tester
- Model No: PE-AOBDV-MXXX
- Category: Testing and Measuring Instruments
- Keywords: Input / Output Power Supply- Single Phase AC 200V-250V,or Single Phase AC 90V-150V Voltage output- for M100, 0-100kV (variable in steps of 100V for proof test) for M080, 0-80kV (variable in steps of 100V for proof test) for M060, 0-60kV (variable in steps of 100V for proof test) BD Voltage accuracy- ±1% + 2 digits (“True BDV test”) BD Voltage resolution- 0.01 kV (10V) Trip Current- Programmable from 5mA to 20mA, in steps of 1mA Safety systems Interlock for Zero start Interlock for HT cover open Auto trip and reset Programmable Parameters Stand time- 0 to 99 mins Stirring Time- 0 to 99 mins Intermediate stand time- 0 to 99 mins Trip Current- 5 to 20 mA, 1mA step Voltage Ramp-up- 0.5kV/sec to 5kV/sec Sequence Repetition- 1 to 99 times Atmospheric Operating Temp- -10°C to +60°C Humidity- < 90% non-condensing Physical Size- 490 mm(W)×470 mm(D)×450 mm(H) Gross Weight- 45kgs (including accessories), except packing
- Manufacturer Name: Power Electronical
- Packing size: 650*650*650 (L*W*H) MM
- Price: ₹270,000
Description
PE-AOBDV-M series is a fully automatic transformer oil breakdown voltage testing kit. The kit is a highly precise and accurate instrument which can perform both breakdown voltage test as well as proof (withstand) test. Automatic Oil Breakdown Voltage tester comes in multiple ratings ranging from 60 kV to 100 kV. The suffix after PE-AOBDV-MXXX in the product model number denotes the rating of the kit.
