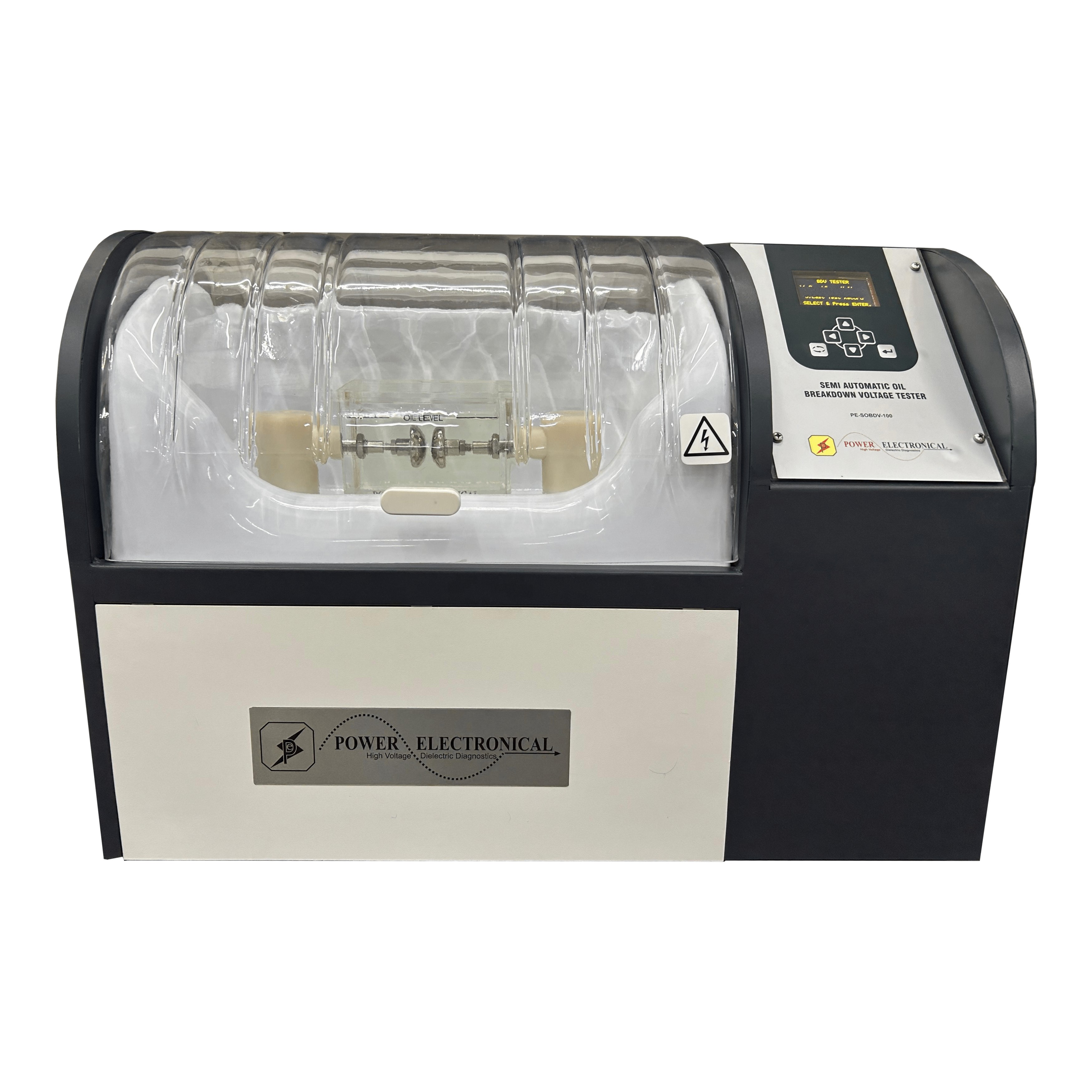

Semi-Automatic Oil Breakdown Voltage Tester
- Model No: PE-SOBDV-100
- Category: Testing and Measuring Instruments
- Keywords: Input / Output Input Power Supply- Single Phase AC 200-250V, 50/60Hz Output- 0-100 kVA AC, 61 Hz Capacity- 100 KVA Operational Display- OLED Operation- Keypad Control Accuracy- ±1 kV Automatic Voltage Ramp Rate- 2kV/sec (approx.) Resolution- 0.1 kV Stirring Speed- 290-300 RPM Trip Time- 10-20 µS Variac- Electronic Atmospheric Operating Temp- -10°C to +60°C Humidity- < 90% non-condensing Physical Size- 638 mm(L)×320 mm(W)×458 mm(H) Gross Weight- 40 kgs (including accessories), except packing
- Manufacturer Name: Power Electronical
- Packing size: 738*420*458 (L*W*H)MM
- Price: ₹40
Description
PE-SOBDV-100 is a semi-automatic transformer oil breakdown voltage testing kit. The kit is a highly precise and accurate instrument which can perform both breakdown voltage test as well as proof (withstand) test. Semi-automatic Oil Breakdown Voltage tester is is designed as the middle range product lies between fully automatic and manual BDV for the customers who accepts the fully automated features with some limitation. The Oil BDV test kit can operate with any one prefix standard loaded as per customer requirement. This test gives final results as per standard test procedure and the result will display after completion. This result will remain till unit is powered. Also customer can use this Oil BDV test kit in Manual mode and can select stand time, intermediate time, stirring time , HV on as per own accord(Custom Test ).
