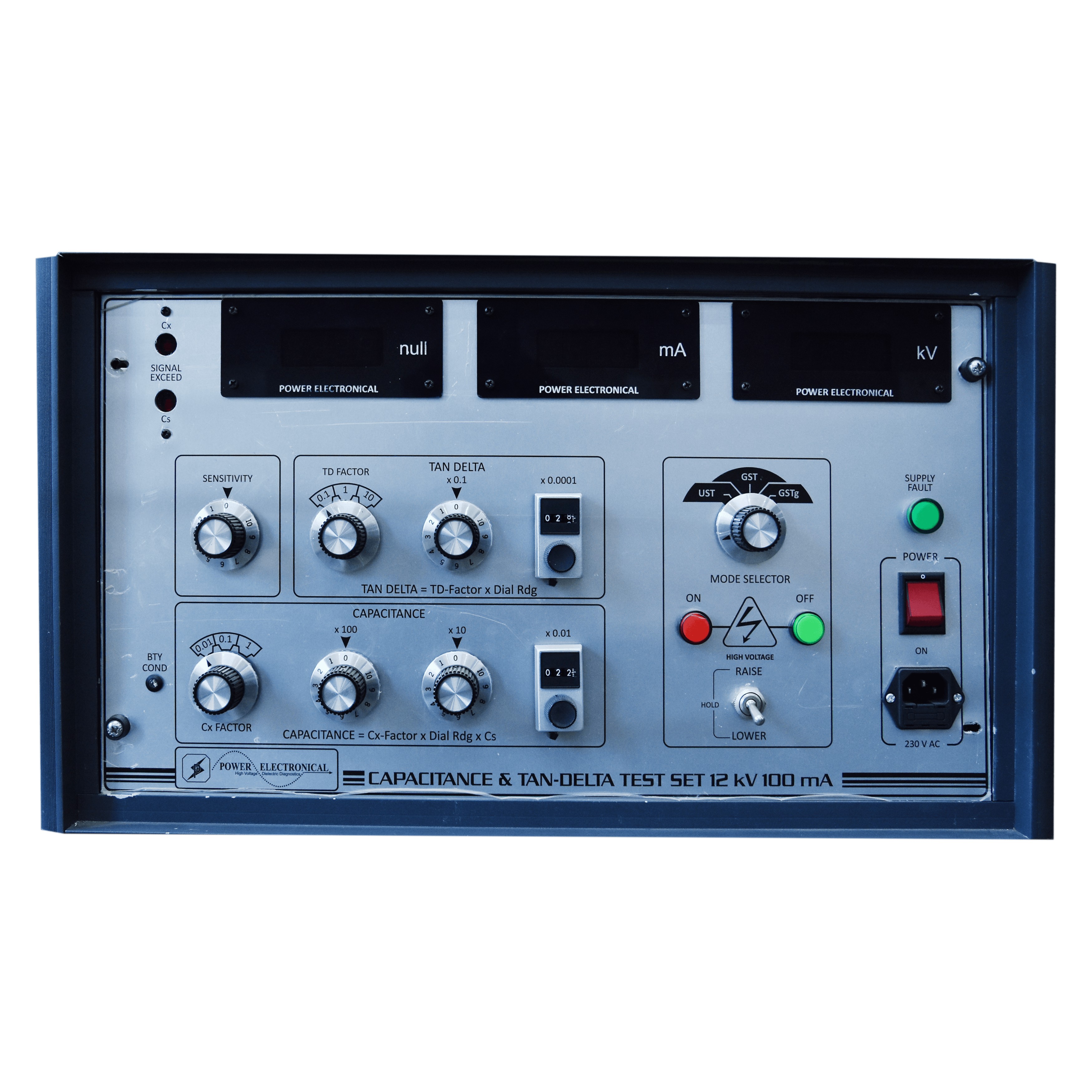

Manual Capacitance & Tan-Delta Tester
- Model No: PE-HVTD-12/100
- Category: Testing and Measuring Instruments
- Keywords: Input power required- 230V AC, 50 Hz± 10% (110V, 60Hz available on special request) Voltage Range- 0-12kV Leakage Current- 100mA Continuous 200mA, short term for less than 15 min Voltage Indication- 3½ digit Digital Panel Meter (DPM) Resolution- 10 V Accuracy- ± 1 % of the reading, ± 2 digit Standard Capacitor- Sf6 Gas filled, 1 00pf ± 1 % , Tan ~ s 1 X 10?-4 Modes for testing- UST (Ungrounded Specimen Test) GST (Grounded Specimen Test) GSTg (Grounded Specimen Test with Guard)
- Manufacturer Name: Power Electronical
- Packing size:
- Price: ₹270,000
Description
PE-HVTD-12/100 is a manually operated capacitance & tan-delta test system with inbuilt 12 kV AC power source measurement bridge and a reference SF6 gas filled standard capacitor. The compact design of the system uses the principle of three winding differential transformer on a high permeability mu-metal core to measure the capacitance & tan-delta of the object accurately. The system is provided with high voltage protection devices, and contained in a sturdy metallic housing with mu-metal lining which shields it from external electromagnetic & electrostatic influences. Built-in battery powered null indicator makes the system suitable for operation in workshop, factories, high voltage switch yards etc. It is suitable for both grounded as well as ungrounded objects.
