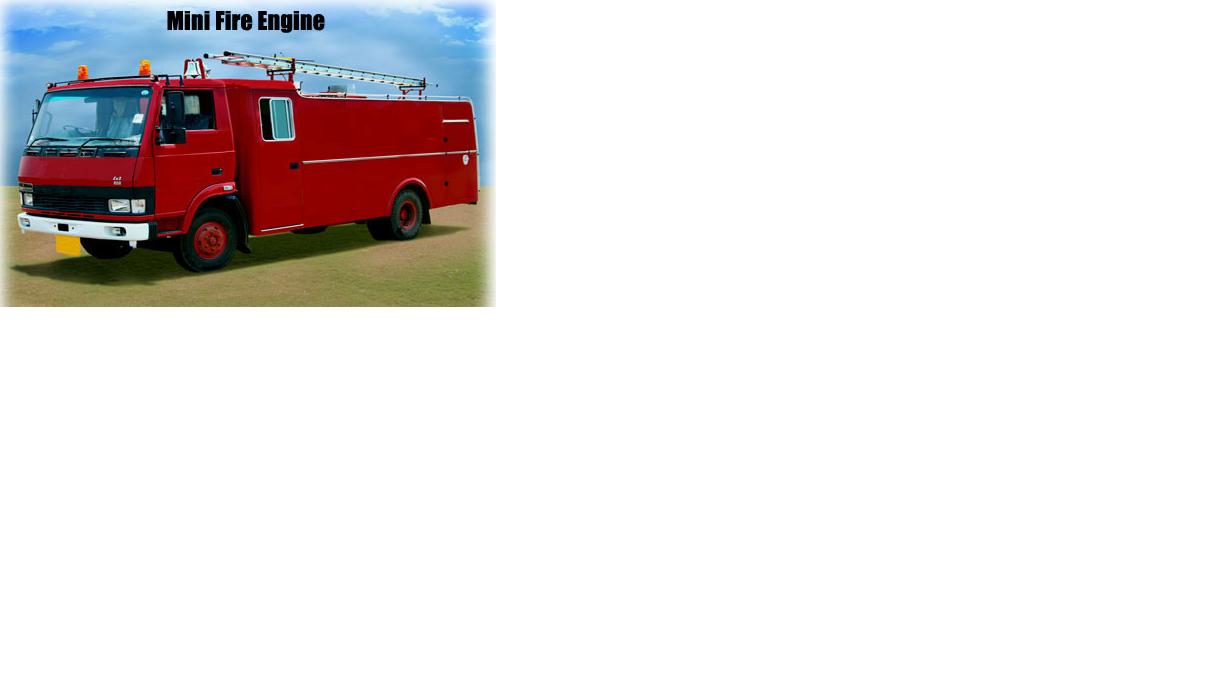

Mini Fire Engine

Description

Chassis : TATA or Ashok Leyland or any similar chassis with or without cabin. Pump type : Single or double stage centrifugal type rear mounted, Normal pressure/Multi pressure. Pump capacity : 1800 / 2250 LPM at 7 kg/cm2 at suction lift of 3 meters. Primer type : Reciprocating or watering or exhaust ejector type capable of lifting water at the rate of 30 cm/sec from 7 meters. Power take off : Driveline P.T.O. of suitable ratio and torque to suit different engines. Water tank : 1800 to 3000 liters. Capacity made from 3 to5 mm thick MS /SS plates Body paneling : External or internal with aluminum sheets or chequered plates. Super structure : MS pressed sections, square pipes, angles etc. Lockers : Sufficient storage lockers on either side of the appliance for stowage of equipments with quick release couplings, brackets, clamps provided. Locker cover : All lockers are covered with easily operate able aluminum roller shutters/doors Monitor : Monitor capable of rotating 360° fitted with 2.½" female inst. coupling to facilitate fixing of any foam or water branch pipe on top of the vehicle immediately behind the drivers cabin. Accessories : Fire bell (GM 250 mm), revolving light / light bar, two tone hooter with public address system, long range siren (1km/1.5km). Standard : IS :950/80(Type B)
