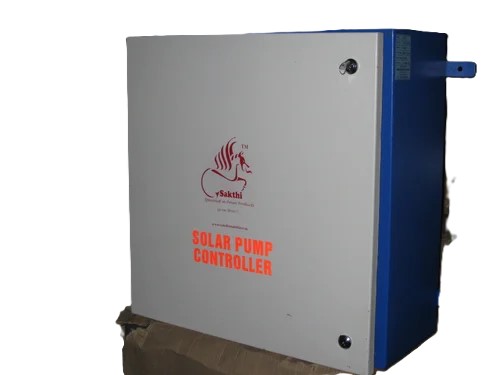

Industrial Solar Pump Inverter

Description

Industrial solar pump inverters, also known as solar Variable Frequency Drives (VFDs), are robust, high-capacity devices designed to power large AC motors directly from solar panels without needing batteries, featuring advanced efficiency algorithms and comprehensive protection mechanisms. Core Operational Features Maximum Power Point Tracking (MPPT): This is a critical feature, using advanced algorithms to continuously track and extract the maximum power available from the solar panels, which can boost energy harvest and daily water output by up to 30%. DC to AC Conversion: Converts the variable DC input from solar panels into stable AC power (typically 3-phase, 380V-480V) required to run standard industrial-grade AC pumps. Variable Frequency Drive (VFD) Functionality: The inverter functions as a VFD, adjusting the output frequency and voltage in real-time based on the available sunlight intensity. This allows the pump speed and water flow rate to vary, ensuring continuous operation even in cloudy weather and optimizing overall system efficiency. Hybrid AC/DC Input (Optional): Many industrial models offer dual input flexibility, allowing the system to seamlessly switch between solar DC input during the day and an AC power source (grid or diesel generator) at night or during low sunlight conditions for uninterrupted operation. Soft Start/Stop Functionality: The inverter gradually ramps up the motor speed during startup to prevent high inrush current, reducing mechanical stress, preventing water hammer in pipelines, and extending the lifespan of the pump and motor. Protection and Control Features Comprehensive Motor Protections: Built-in diagnostic and protection features safeguard the entire system from harmful conditions: Dry-run protection: Automatically shuts off the pump if no water is detected in the source (e.g., borewell, river), preventing costly damage. Overload and Short Circuit Protection: Safeguards the motor and inverter from excessive current draw. Over/Under Voltage and Over-temperature Protection: Ensures stable operation within safe electrical and thermal limits. Locked Pump Detection and Reverse Polarity Protection: Prevents damage from mechanical faults or incorrect wiring.
