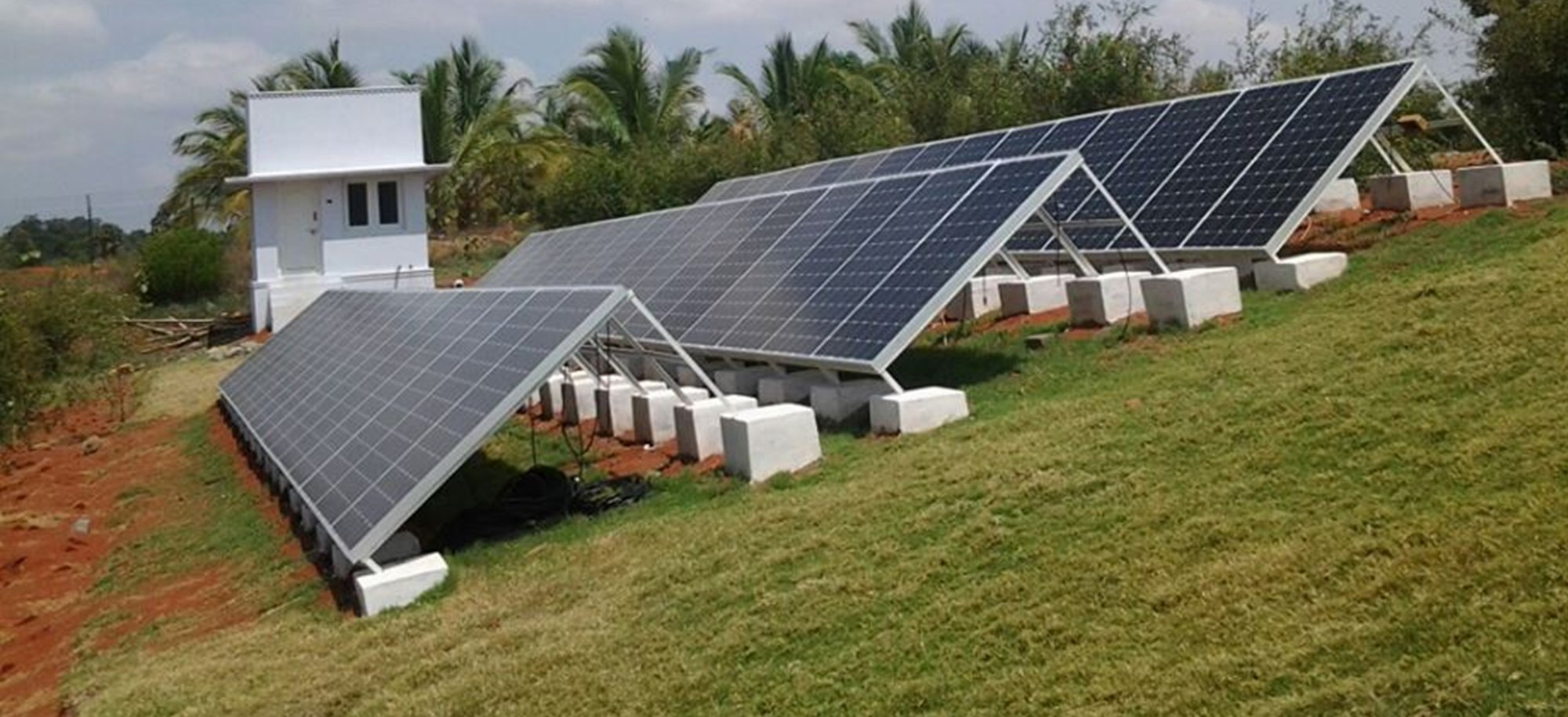

Solar Water Pumping System

Description

solar water pumping system is an off-grid solution that uses electricity generated by solar photovoltaic (PV) panels to power a water pump, ideal for irrigation and remote water supply. Key Components A complete solar water pumping system comprises the following elements: Solar Panels (PV Modules): These convert sunlight directly into DC electricity. They are usually high-efficiency, IEC certified, and come with a 25-year power output warranty. Motor Pump Set (AC or DC): This is the core lifting mechanism. Options include submersible pumps for deep borewells, surface monoblock pumps for open wells or canals, and openwell submersible pumps. Solar Pump Controller/Inverter (VFD): A crucial component that manages power flow and includes Maximum Power Point Tracking (MPPT) technology to maximize efficiency. It also provides essential motor protection features. Module Mounting Structure: Typically made of galvanized iron, these structures support the solar panels and can be fixed or have manual/auto dual-axis tracking for optimal sun exposure. Accessories: Includes necessary cables, connectors (like MC4), earthing kits, and piping. Features and Benefits Solar water pumping systems offer a reliable and eco-friendly alternative to conventional electricity or diesel generators. No Operational Costs: Once installed, the system uses free, abundantly available solar energy, eliminating fuel costs. Automatic Operation: The pump automatically starts and stops based on solar intensity (dusk to dawn operation). Durability and Low Maintenance: Systems are designed for a long life (panels typically have a 25-year warranty) and require minimal upkeep. Dual Mode Operation: Many controllers are "hybrid," allowing the system to run on AC grid power or a generator when sunlight is unavailable. Built-in Protections: The controller includes numerous safety features, such as: Dry running protection. Over-voltage and under-voltage protection
