Description

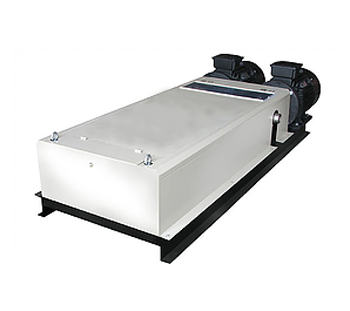

Two pumps assembled to pump sets in series or only one pump, pump is closed with standard motor by rigid coupling. Pump is installed horizontally. Impellers are installed back to back, so as to balance the big trust force of force of the pump. For the wet parts, for HP model, it is SS 304 or SS 316 for VMHP, for precision molding part, the material is duplex stainless steel, for sectional material part, the material is super austenitic stainless steel. Curve tolerance is in conformity with ISO9906 Annex A. Simple structure, reliable, high efficient, light and aesthetic. Inlet & Outlet : PJE Connection. Cartridge mechanical seal, easy for service. High Pressure. Y2 Series standard motor. Available MOC : SS 304, SS 316, SS 205 and SS 904. Maximum working Pressure : up to 75 bar Applications : Water treatment : Ultra filtration system, Reverse Osmosis System, Booster System, High Pressure Flushing System, Sea Water Desalting R/O system, Water Supply. Working Conditions : Liquid Temperature : -15°C +70°C (Normal) and-15°C +120°C (Hot), Ambient Temperature : up to +40°C, Altitude : up to 1000 m. Motor : TEFC Motor, Protection Class : IP 55, Insulation Class : F Voltage : 50 HZ - 3 X 200 - 415 V & 1 X 220 - 240 V and 60 HZ - 3 X 200 - 480 V.
