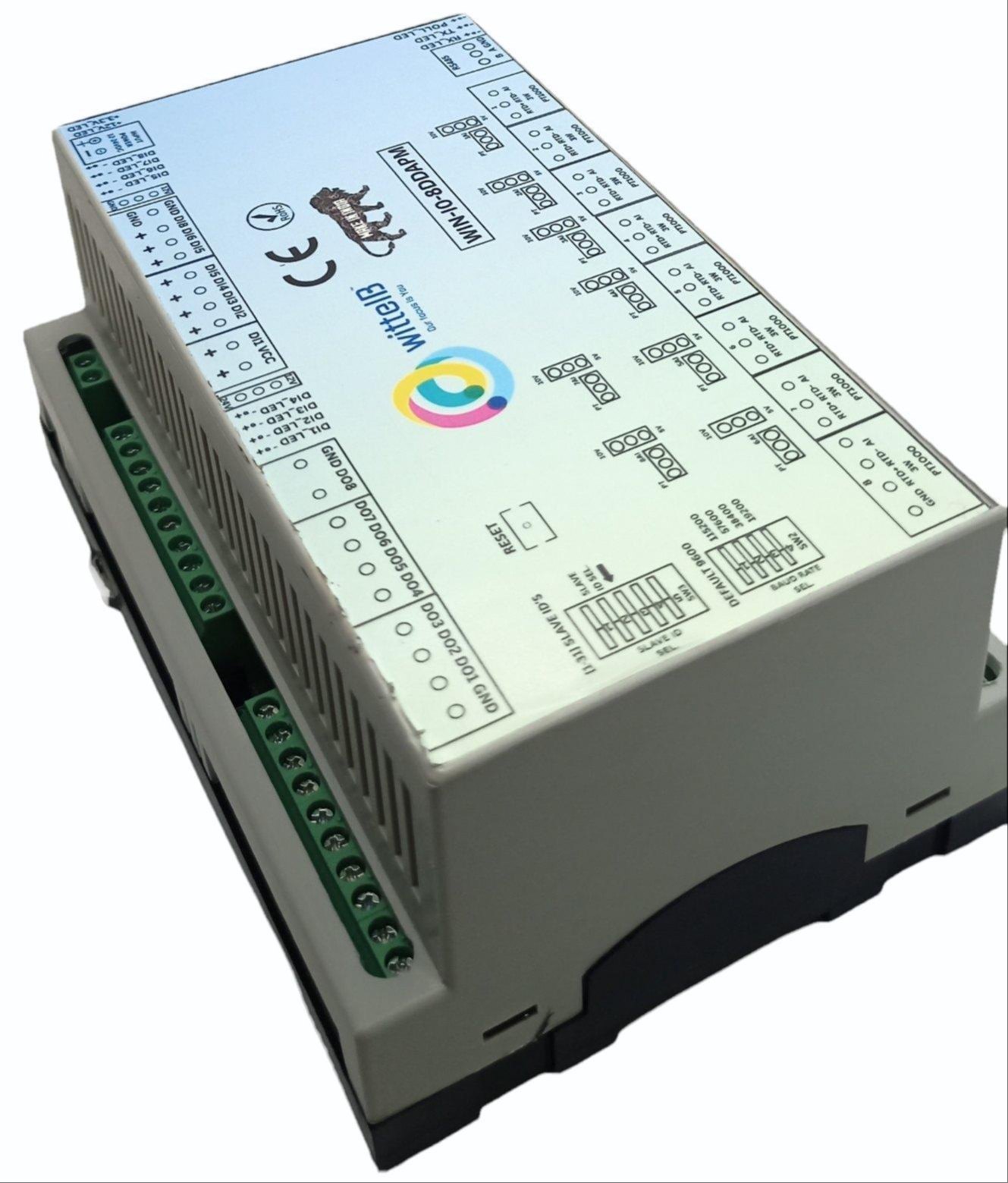

8 Analog Input / PT100 W 8 Digital Input N 8 Digital Output W Modbus RTU RS485|WI-IO-8DDAPM
- Model No: WI-IO-8DDAPM
- Category: Circuit Boards
- Keywords: WIN-IO-8DDAIPM, Multi-function IO Module, 8 AI Module, PT100 Input Module, 4–20mA AI Module, 8 DI Module, 3–30V DC DI, 8 DO Transistor Output, Modbus RS485 IO Module, DIP Configurable IO, Industrial IO Module, Automation Module, Digital Output Module, Universal Input Module, 12–24V DC IO Module.
- Manufacturer Name:
- Packing size:
- Price: ₹7,888
Description
The WIN-IO-8DDAIPM is a versatile, multi-function industrial IO module designed for flexible automation, monitoring, and control applications. It operates on a 12–24V DC power source and features the following configurable IO options: Analog Input / RTD Input 8-Port AI (4–20mA) or 8-Port PT100 (Jumper Selectable) Suitable for sensors, transmitters, and precise temperature monitoring Digital Input 8-Port DI (3–30V DC) with built-in 12/24V DC reference voltage Ideal for switches, proximity sensors, and status signals Digital Output 8-Port DO (Transistor-based, 25mA output current) Suitable for driving indicators, relays, and low-current loads Modbus RS485 DIP Configuration Slave ID selectable via DIP switch (1–32) Baud Rate configurable: 9600 / 19200 / 38400 / 115200 Designed for reliability and flexibility, this module integrates seamlessly with PLC, SCADA, BMS, EMS, and industrial automation systems.
