Description

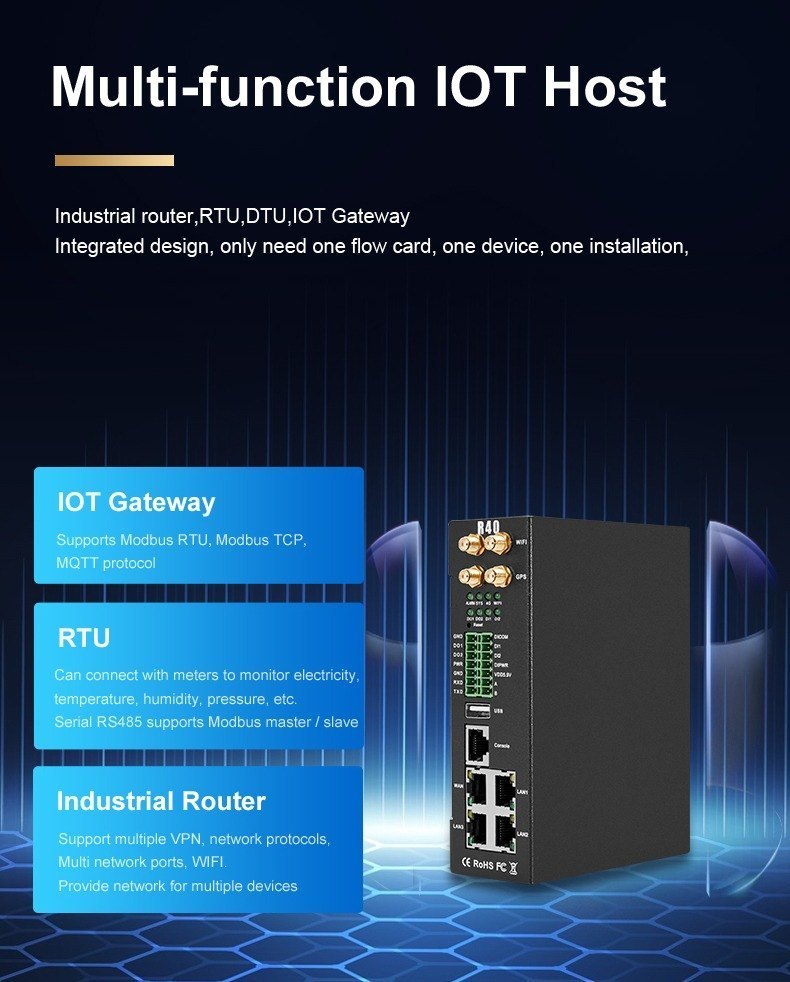

The R40 is an industrial-grade, multifunctional IoT router and gateway designed for high-reliability automation, remote monitoring, and data integration applications. It supports dual SIM cards, 1 WAN, 3 LAN ports, WiFi, and multiple industrial interfaces including 4 Analog Inputs (AIN), 2 Digital Inputs (DI), 2 Digital Outputs (DO), 1 RS485, and 1 RS232. This wide range of connectivity options makes the R40 ideal for SCADA, PLC networking, machine data acquisition, and cloud-based IIoT deployments. Newly Added Enhanced Functions MQTT optimization – Transmits only changed data to reduce bandwidth usage. Cellular module disable option – Allows switching to Ethernet-only mode. Customizable MQTT payload format – Supports flexible data structure needs. Configurable Modbus master settings – Adjustable poll cycle and response timeout. Advanced timer settings – Customizable start time, end time, and cycle count. Manual LAN/WAN configuration – Flexible network mapping. USB storage support – USB disk can be shared over the LAN network. Built for demanding industrial environments, the R40 delivers reliable networking, edge processing, protocol conversion, and secure IoT connectivity.
