Description

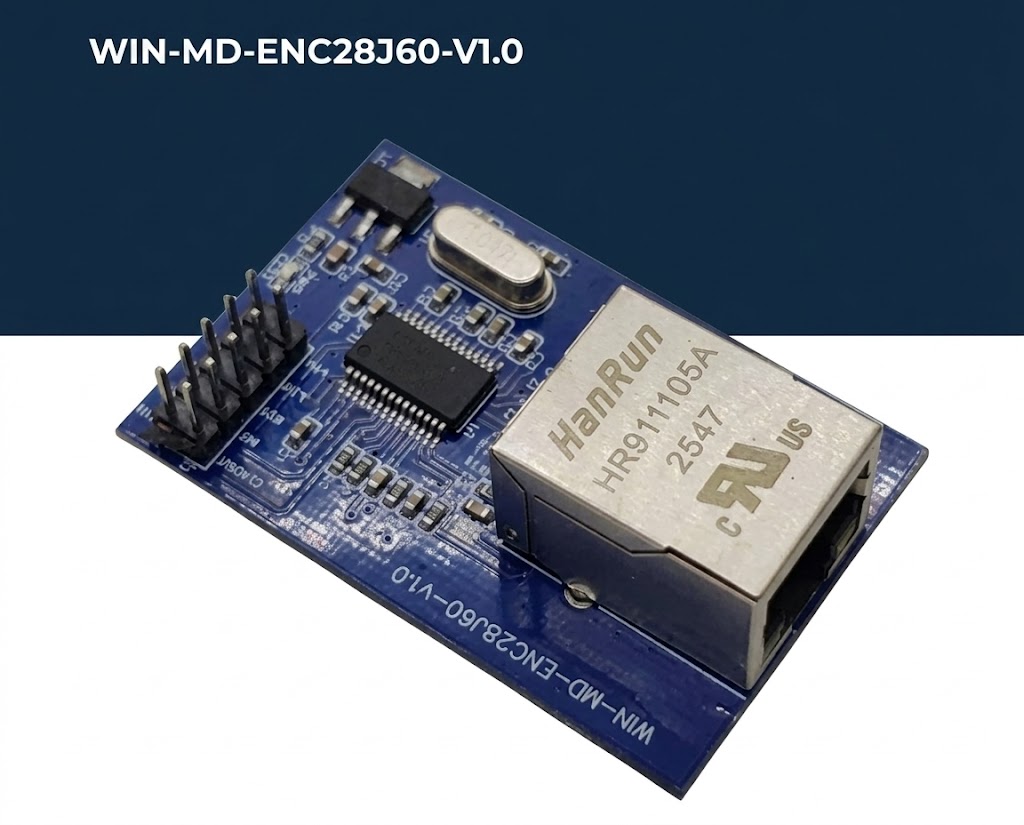

WIN-MD-ENC28J60 Ethernet Module is a cost-effective networking solution designed for embedded systems and industrial applications. It is based on the ENC28J60 Ethernet controller, which integrates MAC and PHY, enabling reliable 10 Mbps Ethernet communication. The module communicates with microcontrollers via a high-speed SPI interface and provides flexibility by allowing users to implement their own TCP/IP stack (such as LwIP or uIP). This makes it ideal for customized networking applications and advanced control systems. The module includes an onboard RJ45 connector with integrated magnetics, ensuring stable and reliable communication with simplified hardware design. Key Features: Based on ENC28J60 Ethernet controller Integrated MAC and PHY (10BASE-T Ethernet High-speed SPI interface for MCU communication Requires external TCP/IP stack (LwIP / uIP) Onboard RJ45 connector with integrated magnetics Cost-effective and customizable networking solution Specifications: Interface: SPI (Serial Peripheral Interface) Ethernet: 10 Mbps (RJ45 with integrated magnetics) Power Supply: 5V DC / 3.3V DC Dimensions: 32.7 mm × 50.0 mm Connector: 2×5 Pin Header Applications: Industrial automation Embedded networking Custom communication systems IoT and smart devices Lightweight web server applications For bulk orders and customization, contact us directly.
